Cement block retaining bolts have fallen out

Recommended Posts

Lots of banging during the spin cycle of my LG F1281TD (about 6 years old) resulted in me taking the machine apart to find the reason.

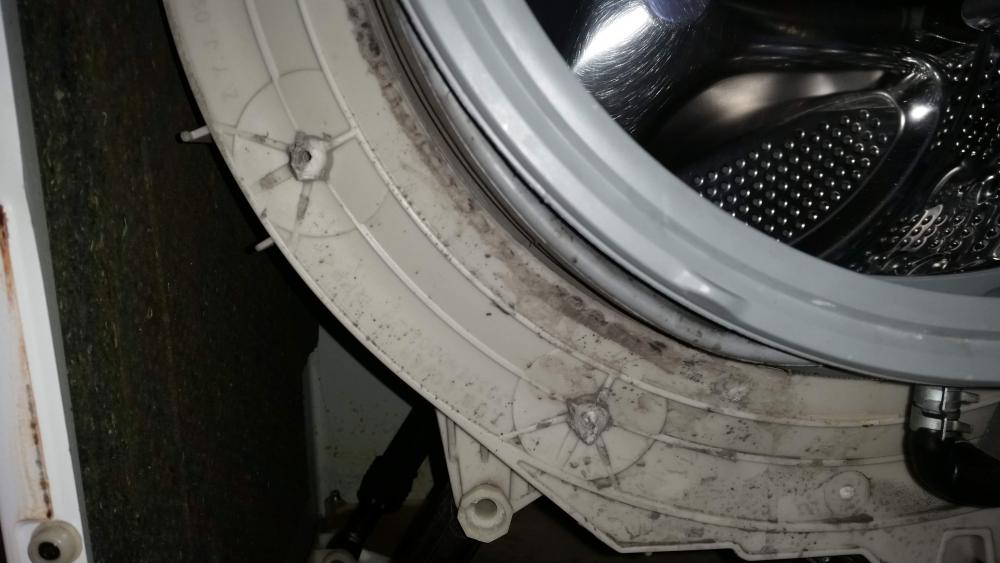

I discovered that a cement weight block attached to the front of the drum was being held in place by just one retaining bolt.
There were three more that had fallen out at the bottom of the machine.

I replaced them and tightened them up pretty well although the thread seemed to have gone on one.

Once the machine was back together I put it on a spin, it started off well but then I heard what I assumed to be the loose bolt fall out.

I haven't taken it apart again yet but at the end of the spin it was banging again and by rocking the drum I can hear the cement block wobbling and hitting the case again.
I suspect the three bolts have come out again and I am assuming that although they seemed pretty tight that perhaps the threads have gone.

Has anyone experienced this before?

I'm stuck for ideas on how to fix the cement block in place if the threads on the drum casing have gone.
That would mean an new drum section?

I'm pretty sure glue and duct tape won't hold. :unsure:

Share this post


Link to post
Share on other sites
