Beko machine, accidently pulled out wire on dial how do I reattach?

Recommended Posts

Ok ok, what I did was I noticed it was skipping certain cycles when in use so I took top off to put WD40 into the mechanism, I did this but curiousity got better of me and I moved the cog part (not the dial part) and I pulled it back a bit and pulled the wire and plastic that turns the dial.

Simple fix I believe but I don't know how to, not totally sure model but it matches visually a WMA1510W I see on Youtube. and says WMB 10 W on washer itself.

I assume its just a case of clipping back on but don't want to risk damaging it if doing it wrong

Share this post


Link to post
Share on other sites

Book washing machine & appliance repairs

Ransom Spares

Note: The links above are needed to help keep this site running, please consider using them.

Is it a mechanism that moves something on the soap dispenser? A photo might help.


Need an engineer, or to buy appliance spare parts? Please use my affiliate links to support this forum.

Book appliance engineer | Buy your appliance Spares

Warning:  Read this before attempting any diy repairsNo representations or warranties are made (express or implied) as to the reliability, accuracy or completeness of advice. I can't be held liable for any loss arising directly or indirectly from the use of, or any action taken in reliance on, any information on this website, which is given free of charge and in good faith.

Share this post


Link to post
Share on other sites

Thats its exactly, there is a cog looking thing on top of where the soap dispenser slots into with a wire that is connected up to the dial with this plastic hook. I can put a picture up if needed when I get home.

The dial moves without it but Im guessing that is what makes it click.

Share this post


Link to post
Share on other sites

Yes, the device needs attaching so that as the control programmer advances through the wash cycle it moves the arm so that it moves a device on the soap dispenser. This device diverts water from one side of the soap drawer to the other and also into the fabric softener compartment. It's very crude.

One way to check is that when on the last rinse, that's probably when the device should direct water flow into the fabric softener department.


Need an engineer, or to buy appliance spare parts? Please use my affiliate links to support this forum.

Book appliance engineer | Buy your appliance Spares

Warning:  Read this before attempting any diy repairsNo representations or warranties are made (express or implied) as to the reliability, accuracy or completeness of advice. I can't be held liable for any loss arising directly or indirectly from the use of, or any action taken in reliance on, any information on this website, which is given free of charge and in good faith.

Share this post


Link to post
Share on other sites

Not easy this one. If I was there I could work it out but all I can say is you need to put the cam bit back on the shaft and make sure it's in the right position. It should be designed so the shaft has a flat spot and the plastic cam will only fit one way. Then you need to make sure the timer is in an off position and it's correctly lined up with the wash cycles on the control panel. Let it do a spin and then stop and turn off. It should be in an off position.

The mechanism that attaches from the soap dispenser needs attaching presumably to the white arm and in such a way that as the control knob is turn it moves the part on the soap dispenser into different places. It should divert water into the right compartment for the right wash. It should divert water into the fabric softener compartment on the last rinse normally.


Need an engineer, or to buy appliance spare parts? Please use my affiliate links to support this forum.

Book appliance engineer | Buy your appliance Spares

Warning:  Read this before attempting any diy repairsNo representations or warranties are made (express or implied) as to the reliability, accuracy or completeness of advice. I can't be held liable for any loss arising directly or indirectly from the use of, or any action taken in reliance on, any information on this website, which is given free of charge and in good faith.

Share this post


Link to post
Share on other sites

Ok, I should make it clear I took the front bit off to see behind it, I notice it lines up perfectly with the numbers on a dial having it set to the right position for timer seems no be no problem, its just the arm part.

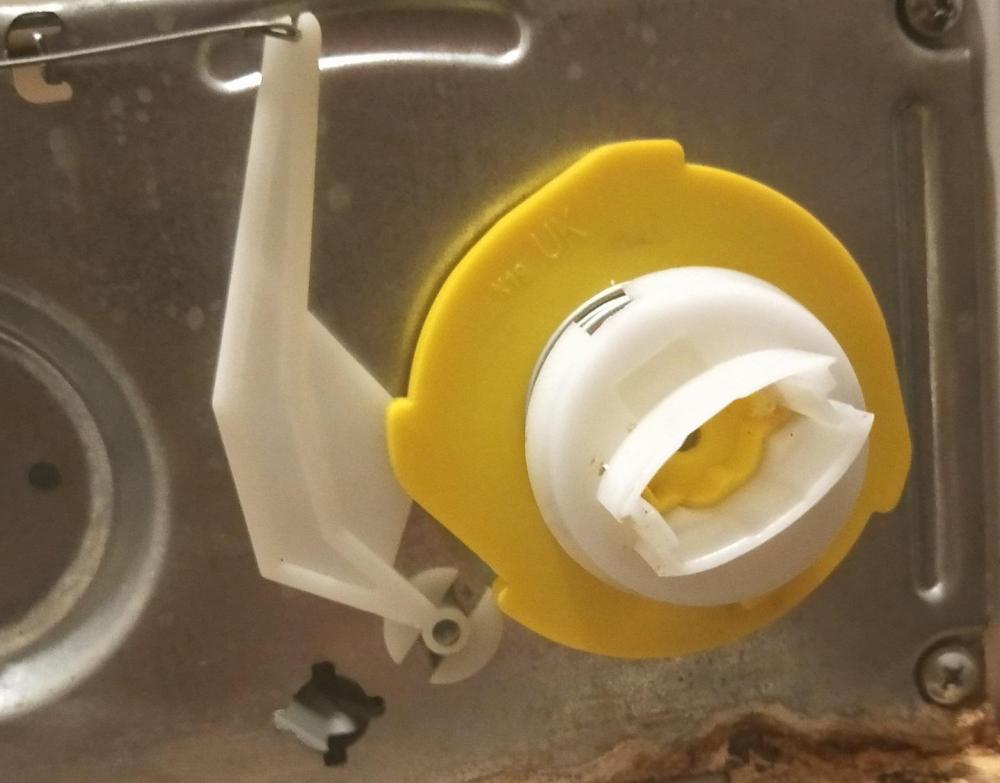

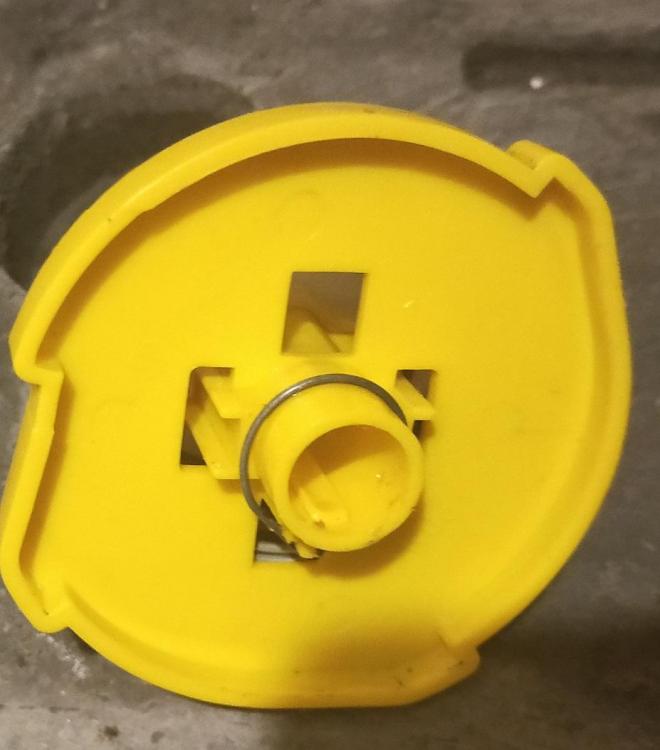

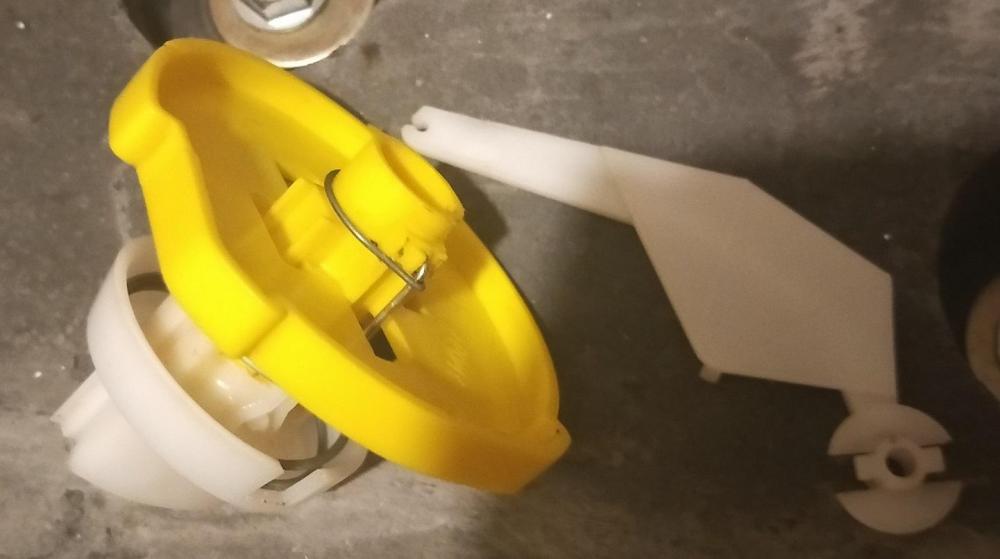

The yellow dial was attached to the green shaft via a screw so that will easily screw back on its just the arm that is a problem, the confusing thing is that the hole in the arm would line up with the screw hole for the dial but then the dial wont be able to slide on the green shaft it makes zero sense to me. the front piece of dial I removed is where the screw hole is in middle.
