Zanussi zwj14591w tripping RCD

Recommended Posts

Hi All

This week we have experience a problem with our Zanussi washing machine after 20 minutes.

* I have check the Heating element with a voltmeter which shows 26.6  (could they still be a fault with this)

* I tested the machine without the Water connect on 2 difference cycles and it ran with any problems & no tripping.

* I drained the water and re- tested it after after 10 minutes the power tripped, switch the RCD back on and it keeps tripping instantly within 15 secs



Can anyone help with what i can test next or what the possible problem could be. Whilst it was on in the first 10 minutes i check for leaks and couldn't really see any.

Once suggestion was a Float switch, any advise on this?

Look forward to your suggestions.



Many Thanks

Share this post


Link to post
Share on other sites

Book washing machine & appliance repairs Buy appliance spare parts

Note: The links above are needed to help keep this site running, please consider using them.

Hi. You need an insulation test meter or you can’t diagnose a tripping electrics fault.


Need an engineer, or to buy appliance spare parts? Please use my affiliate links to support this forum.

Book appliance engineer | Buy your Spares (4Washerhelp)

Warning:  Read this before attempting any diy repairsNo representations or warranties are made (express or implied) as to the reliability, accuracy or completeness of advice. I can't be held liable for any loss arising directly or indirectly from the use of, or any action taken in reliance on, any information on this website, which is given free of charge and in good faith.

Share this post


Link to post
Share on other sites

I do have some useful advice here though Fusing electrics


Need an engineer, or to buy appliance spare parts? Please use my affiliate links to support this forum.

Book appliance engineer | Buy your Spares (4Washerhelp)

Warning:  Read this before attempting any diy repairsNo representations or warranties are made (express or implied) as to the reliability, accuracy or completeness of advice. I can't be held liable for any loss arising directly or indirectly from the use of, or any action taken in reliance on, any information on this website, which is given free of charge and in good faith.

Share this post


Link to post
Share on other sites

Hi Guys

Thanks for the tips. I do have insulation Voltmeter so that will help diagnose anything you guys advise.

I have been working through the list to check. So far the

*Motor seems fine

*Element reading 26.6

*checked for pipes leaking on to electrical parts



The pump was dirty so I have cleaned all that and put it back together.

I need to test The suppressor (once I can locate it)



Many Thanks





Share this post


Link to post
Share on other sites
1 minute ago, 4lps said:

I do have insulation Voltmeter so that will help diagnose anything you guys advise.

Hi. An insulation test meter? (Often called a Megger) One that puts 500 volts through parts to test for electrical insulation leaks?


Need an engineer, or to buy appliance spare parts? Please use my affiliate links to support this forum.

Book appliance engineer | Buy your Spares (4Washerhelp)

Warning:  Read this before attempting any diy repairsNo representations or warranties are made (express or implied) as to the reliability, accuracy or completeness of advice. I can't be held liable for any loss arising directly or indirectly from the use of, or any action taken in reliance on, any information on this website, which is given free of charge and in good faith.

Share this post


Link to post
Share on other sites

Good. It should be very easy to find what’s tripping the electrics using the megger and my article.


Need an engineer, or to buy appliance spare parts? Please use my affiliate links to support this forum.

Book appliance engineer | Buy your Spares (4Washerhelp)

Warning:  Read this before attempting any diy repairsNo representations or warranties are made (express or implied) as to the reliability, accuracy or completeness of advice. I can't be held liable for any loss arising directly or indirectly from the use of, or any action taken in reliance on, any information on this website, which is given free of charge and in good faith.

Share this post


Link to post
Share on other sites

Thanks Andy, i will go through everything one by one.

I know which setting to use for the Heating element. Which setting do i need to leak for leaks? is it the same one



Share this post


Link to post
Share on other sites

All the insulation test meters I’ve used have just had 2 settings. One for continuity testing and one for insulation testing which puts 500 volts (DC) through the parts. If yours has more options try to find a manual online.


Need an engineer, or to buy appliance spare parts? Please use my affiliate links to support this forum.

Book appliance engineer | Buy your Spares (4Washerhelp)

Warning:  Read this before attempting any diy repairsNo representations or warranties are made (express or implied) as to the reliability, accuracy or completeness of advice. I can't be held liable for any loss arising directly or indirectly from the use of, or any action taken in reliance on, any information on this website, which is given free of charge and in good faith.

Share this post


Link to post
Share on other sites

Thanks Andy,



I have now cleaned the pump and put everything back together.

It still runs without the water filling.

So connected the water and now the water isn't filling (doh)..

I will have a look at that otherwise call it a day



Share this post


Link to post
Share on other sites

Hi Guys



I disconnect the heating element and ran the machine. At the RCD didn't trip, so even though I got a continuity reading of 26.6.

By disconnect the + Pos and -Neg from the heating element and taping up the wires, and  running the cycle was a good test.

However I have a leak when running the cycle. I disconnect the 2 hoses on the filter/Pump. Not sure what i have done to cause the leak. Maybe there's a pipe i have disturbed.

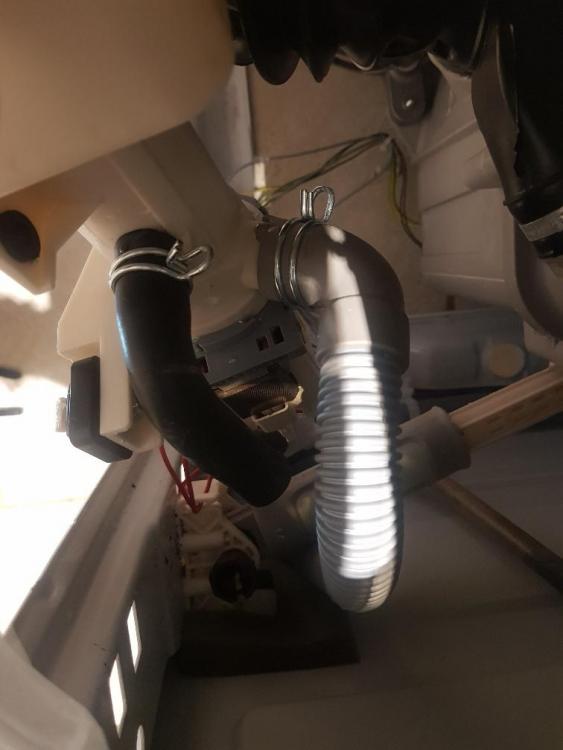

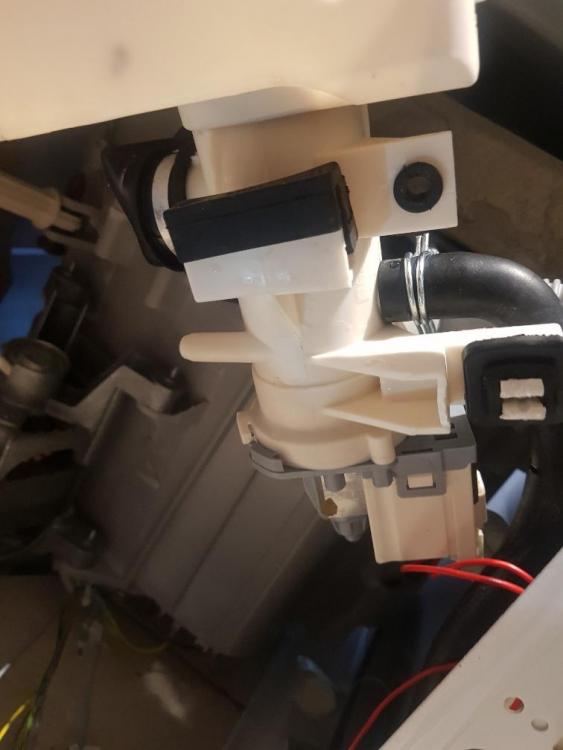

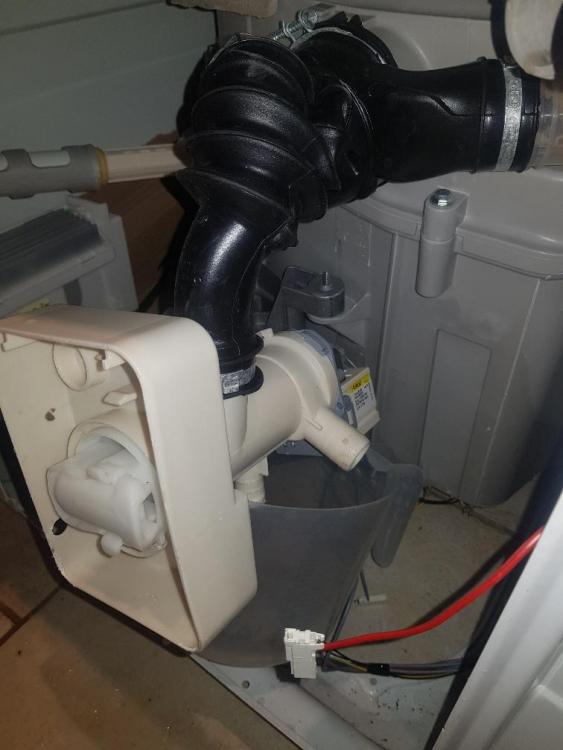

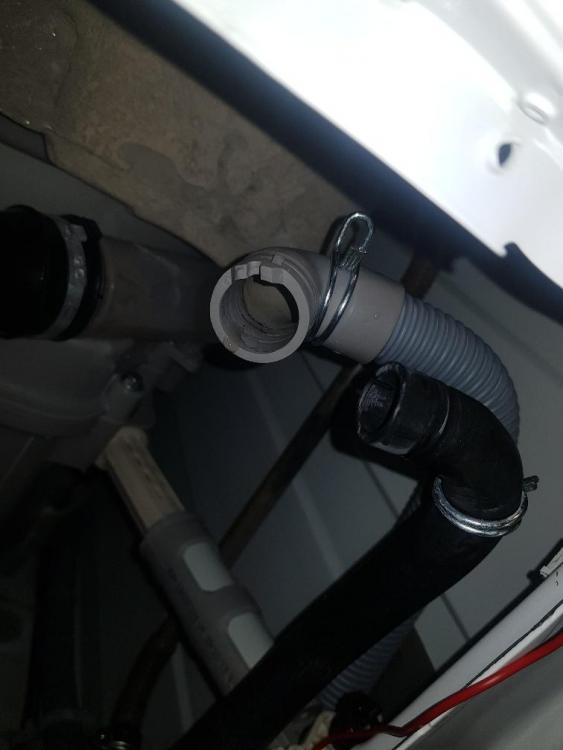

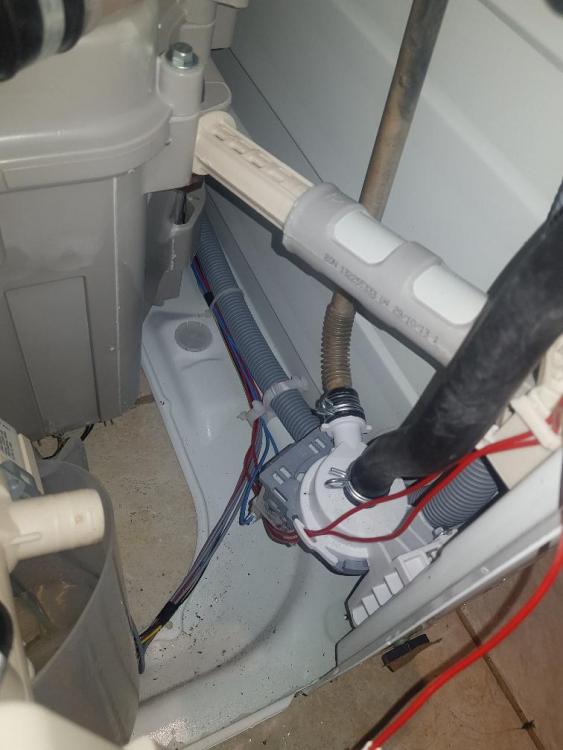

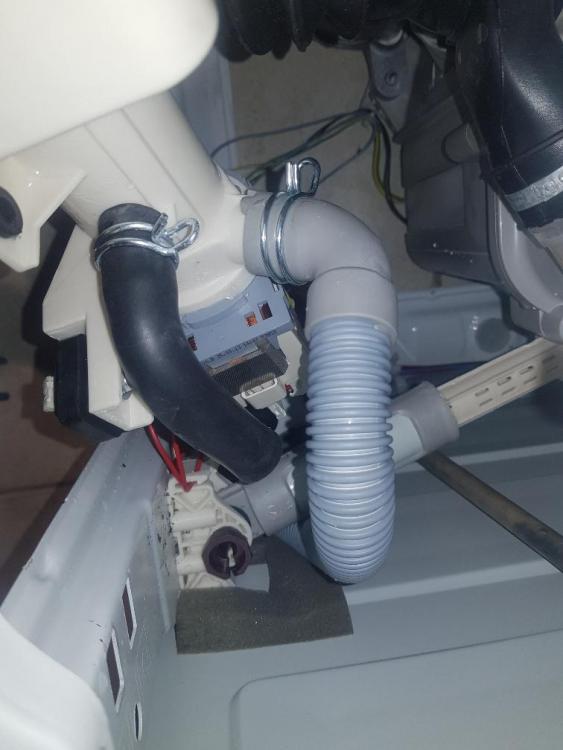

Pictures attached. Any advise
